Product and Parts Breakdown for 100-379
500-226 - D/E Bearing
ID OD W 17mm 52mm 16mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides

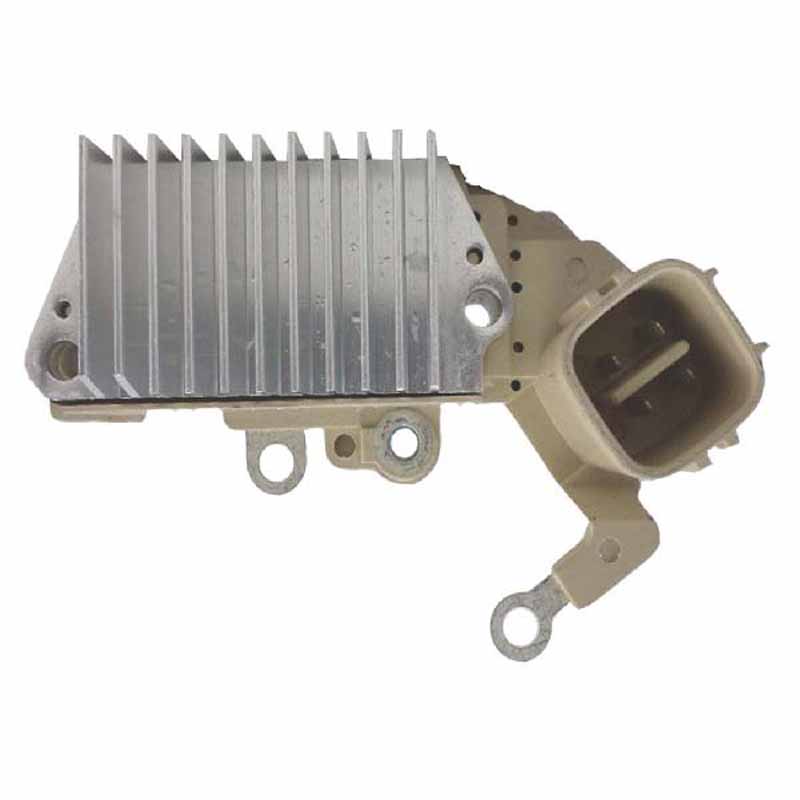

500-7107 - Regulator
Voltage Set Point 14.8V A Circuit
500-940 - Rectifier
B+ Post = 6 mm Denso 70-110A IR/IF Alternators w/ 118mm OD Stator 8-40A Press-Fit Diodes Aluminum Heatsink Welded Diode Terminations
BA005 - Brush
Replacing 133673 Denso 100211 Type Alternators
SR004 - Slip Ring
Replacing 135173 Application Denso Alternators
PL2-WL - Alt. Plug
Denso Alternator Plug 4 Pin With 150mmLead Fits Toyota.Honda Ect
