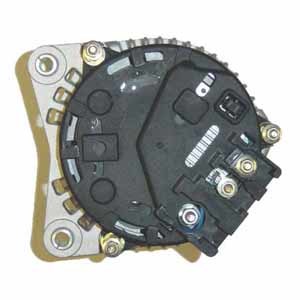

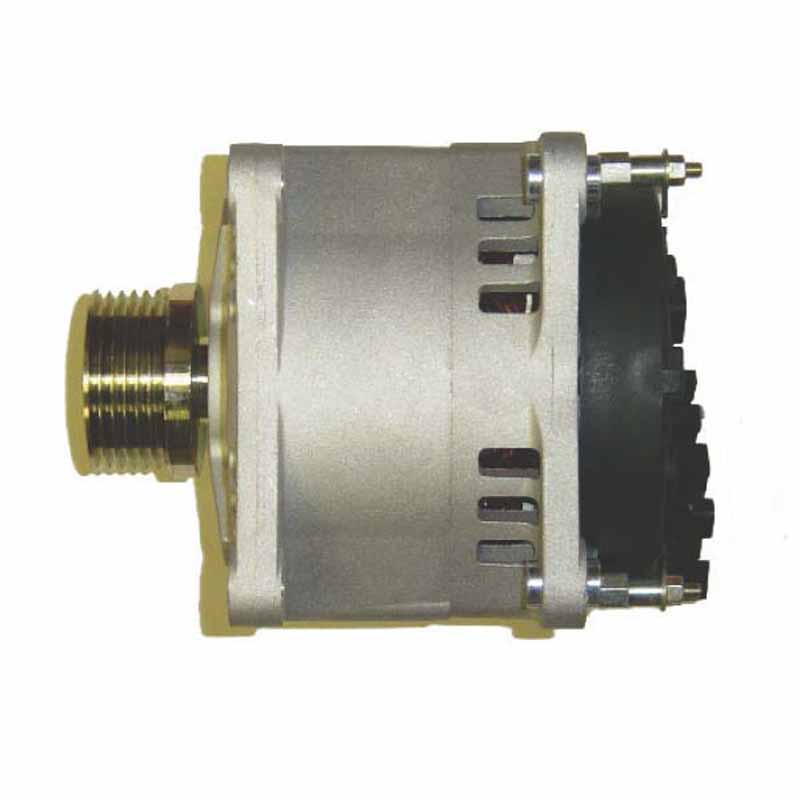

Product and Parts Breakdown for 100-021
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides

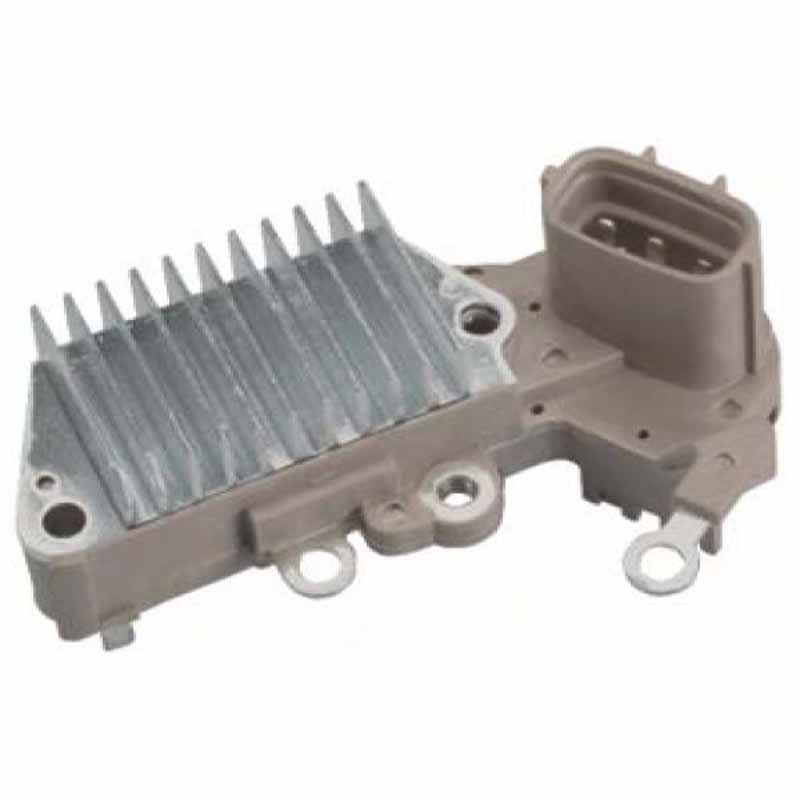

500-7000 - Regulator
Voltage Set Point 14v A Circuit Replaces: Toyota 27700�23010 (stamped 2861, 3040, 3041)
500-940 - Rectifier
B+ Post = 6 mm Denso 70-110A IR/IF Alternators w/ 118mm OD Stator 8-40A Press-Fit Diodes Aluminum Heatsink Welded Diode Terminations
BA005 - Brush
Replacing 133673 Denso 100211 Type Alternators
PL7-WL - Alt. Plug
Alternator T Plug With lock tab and 150mm Lead If your connector does not utilize the lock mechanism simply cut it off. (Butt connectors included)
