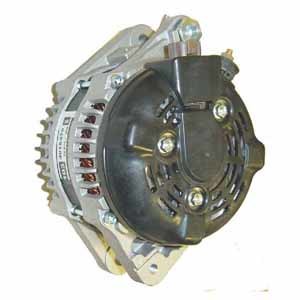

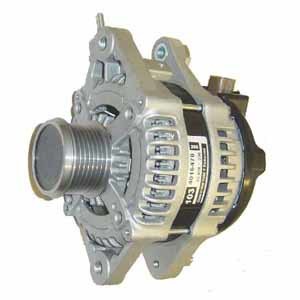

Product and Parts Breakdown for 100-4115

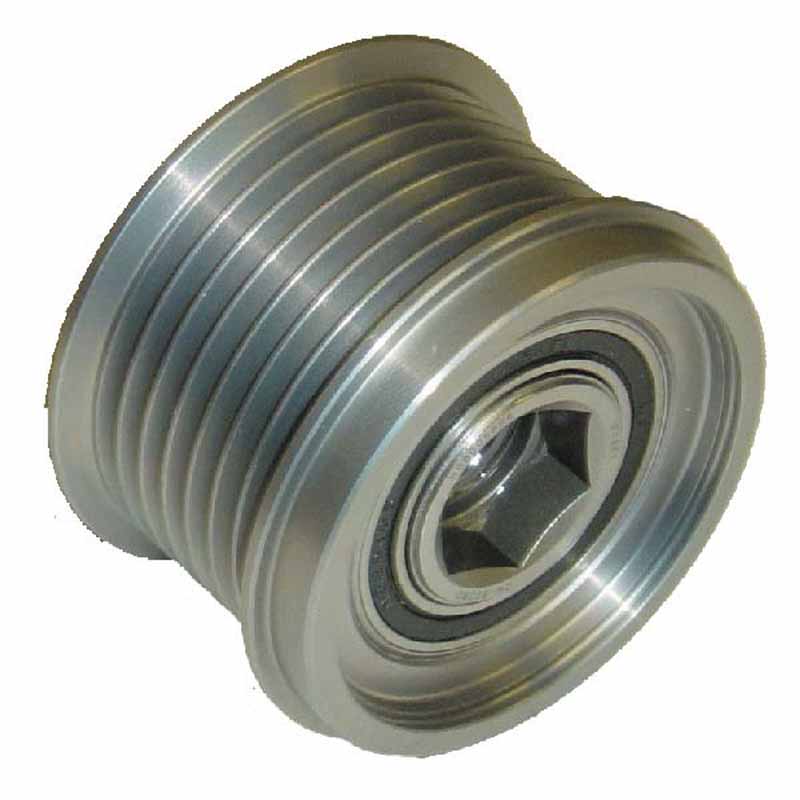

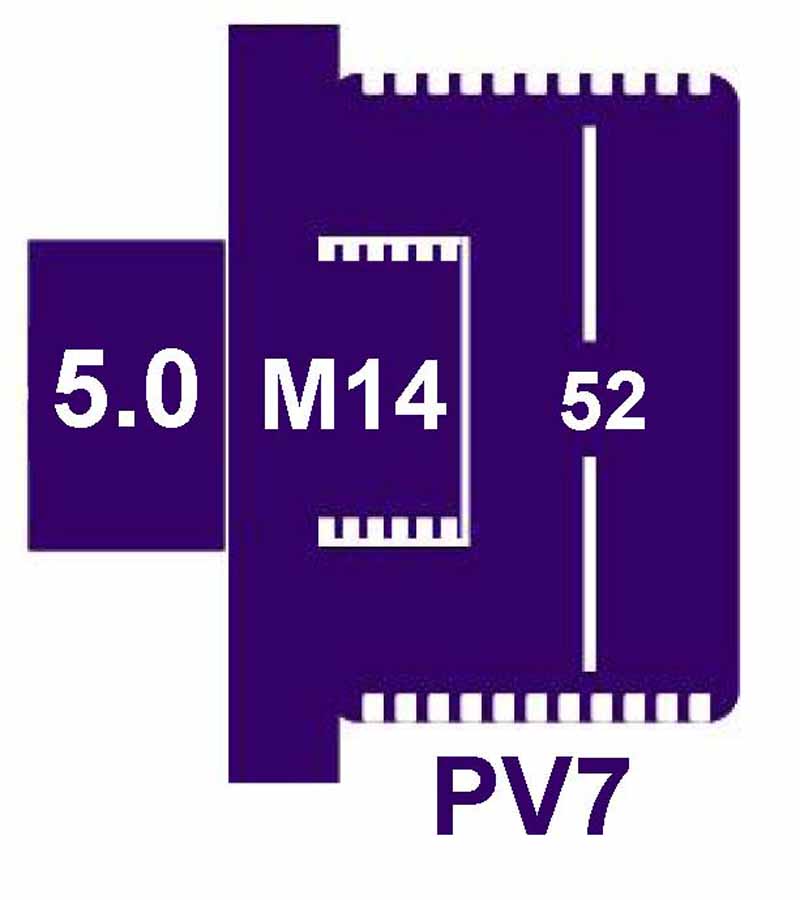

695-ND - Pulley
Replacing 920726 Application Denso Toyota Clutch Pulley
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-202 - SRE Bearing
ID OD W 15mm 35mm 11mm Seal Both Sides
500-144 - Regulator
Voltage Set Point 14.1V B Circuit Full range LRC Multi–step TempCo (unless in RLO mode)
500-868 - Rectifier
B+ Post = 6 mm 12-50A press-fit avalanche diodes (20-24V) 117mm OD
BA002 - Brush
Replacing 235607 Denso 104210 Type Alternators
SR009 - Slip Ring
Replacing 239718 Application Denso 104210 Type
PL2-WL - Alt. Plug
Denso Alternator Plug 4 Pin With 150mmLead Fits Toyota.Honda Ect
