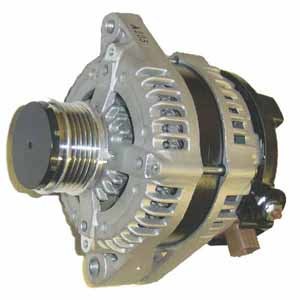

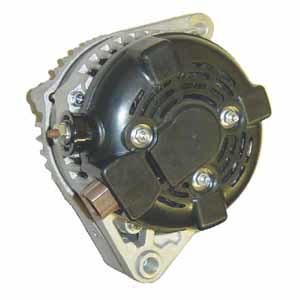

Product and Parts Breakdown for 100-4009
500-424 - Pulley
Replacing F-570753 Application Denso Toyota/Lexus Clutch Pulley
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides
500-169 - Regulator
Voltage Set Point 14.1V B Circuit (stamped GS2M3010, GS2M3040, GS3M3390)

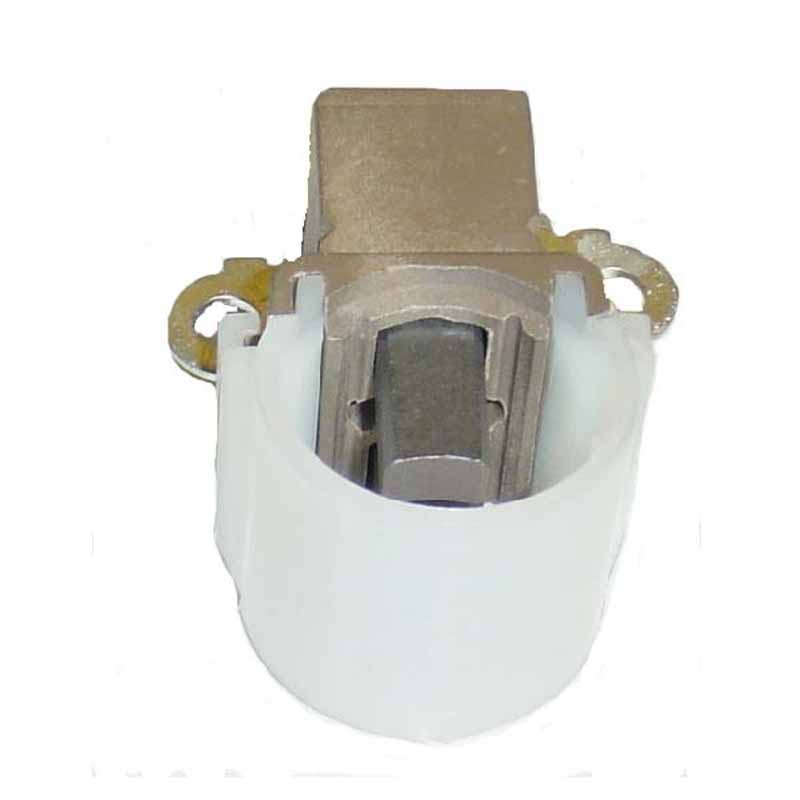

BA003 - Brush
Replacing 235588 Denso 421000 Type Alternators
SR004 - Slip Ring
Replacing 135173 Application Denso Alternators
PL2-WL - Alt. Plug
Denso Alternator Plug 4 Pin With 150mmLead Fits Toyota.Honda Ect
