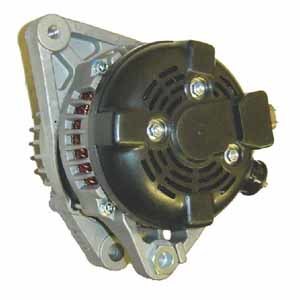

Product and Parts Breakdown for 100-4004
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides
500-169 - Regulator
Voltage Set Point 14.1V B Circuit (stamped GS2M3010, GS2M3040, GS3M3390)
500-868 - Rectifier
B+ Post = 6 mm 12-50A press-fit avalanche diodes (20-24V) 117mm OD
BA002 - Brush
Replacing 235607 Denso 104210 Type Alternators
PL2-WL - Alt. Plug
Denso Alternator Plug 4 Pin With 150mmLead Fits Toyota.Honda Ect
