Bosch

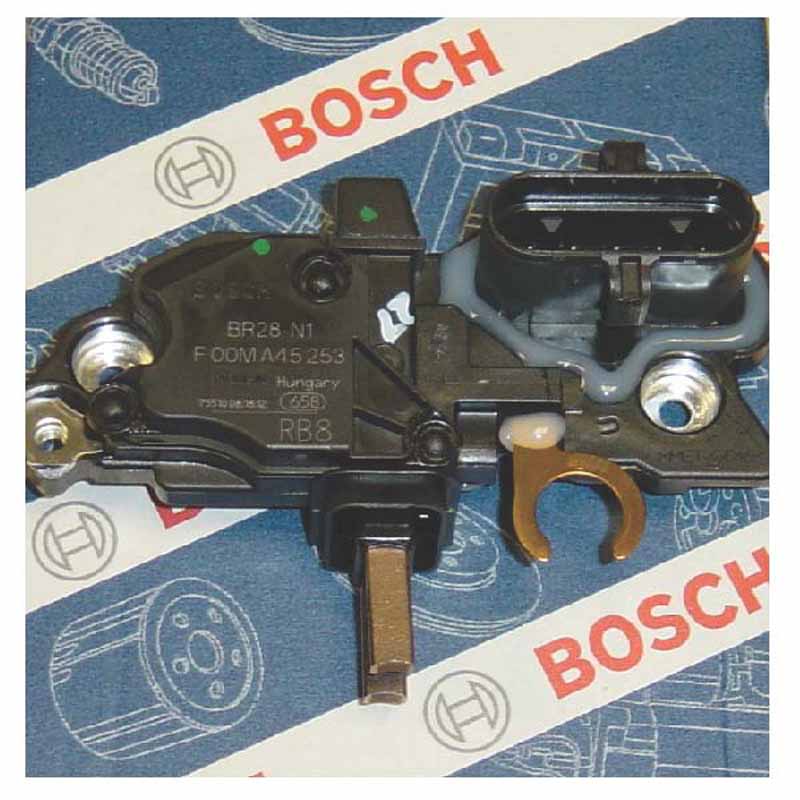

Voltage Set Point 14.5V A Circuit Hermetically sealed circuit

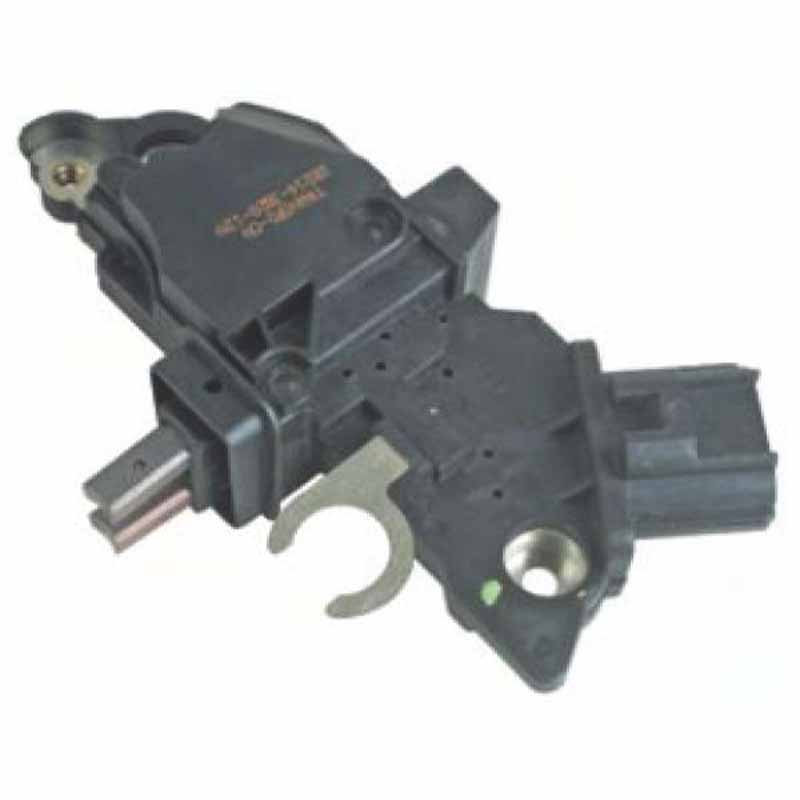

Voltage Set Point 14.5V A Circuit With Soft Start

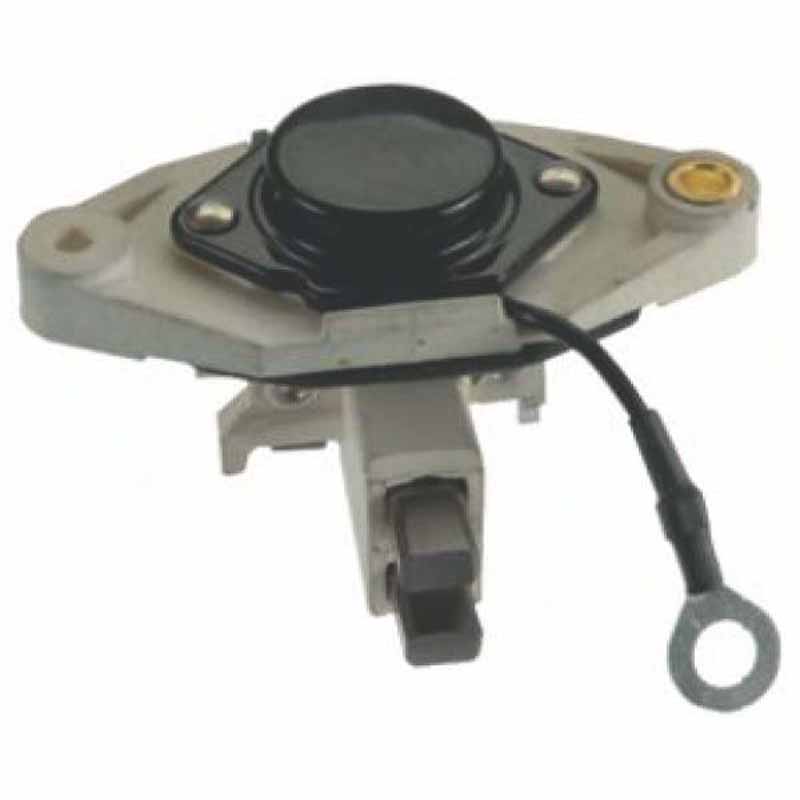

Voltage Set Point COM

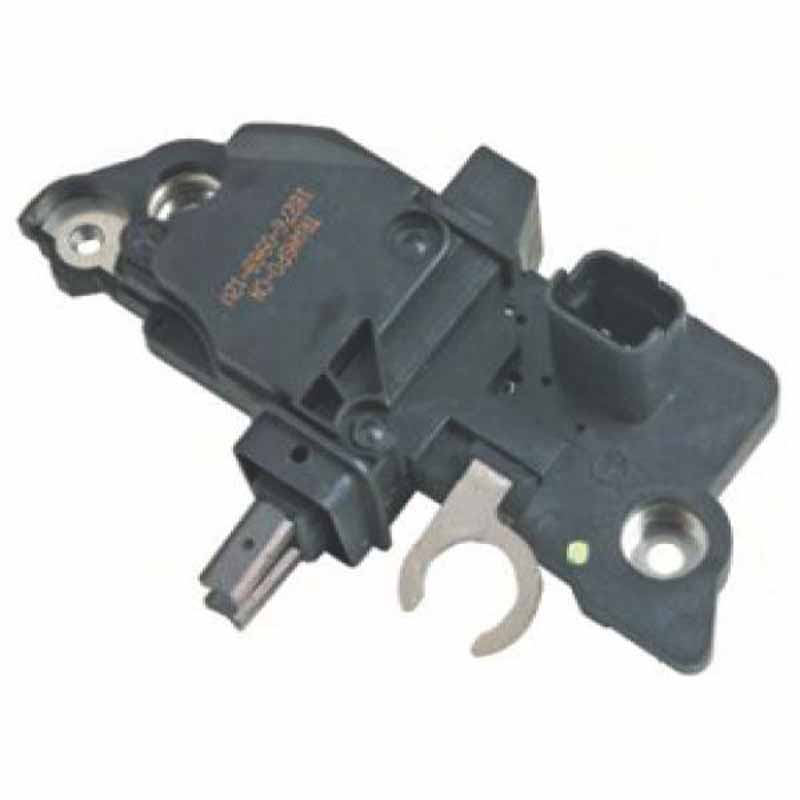

Voltage Set Point 14.5V A Circuit Hermetically sealed circuit Slipring OD : 14 mm

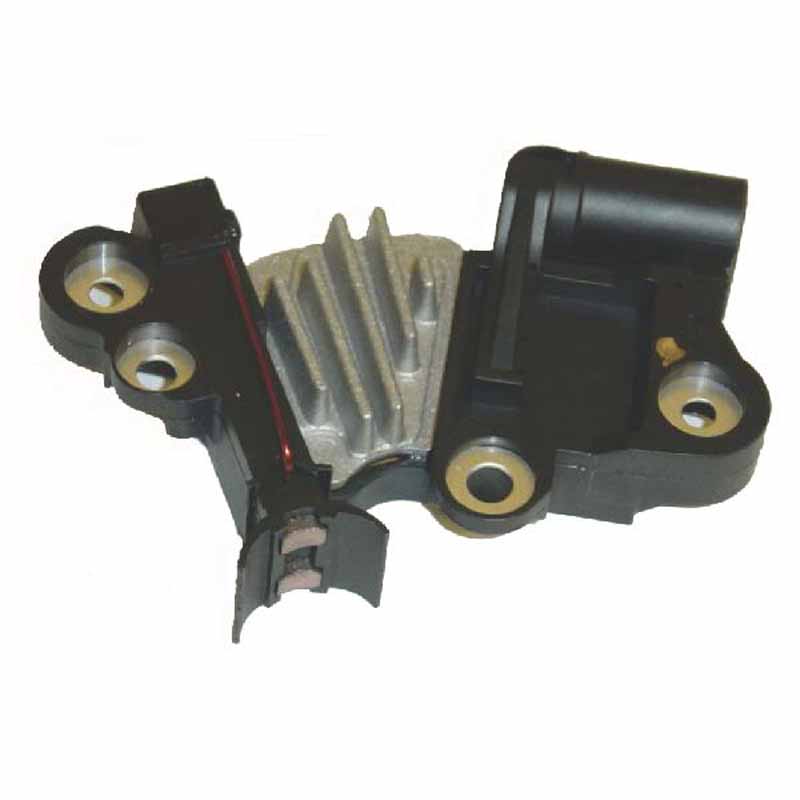

Voltage Set Point 28.0V A Circuit Slipring OD : 32 mm Hermetically sealed circuit,

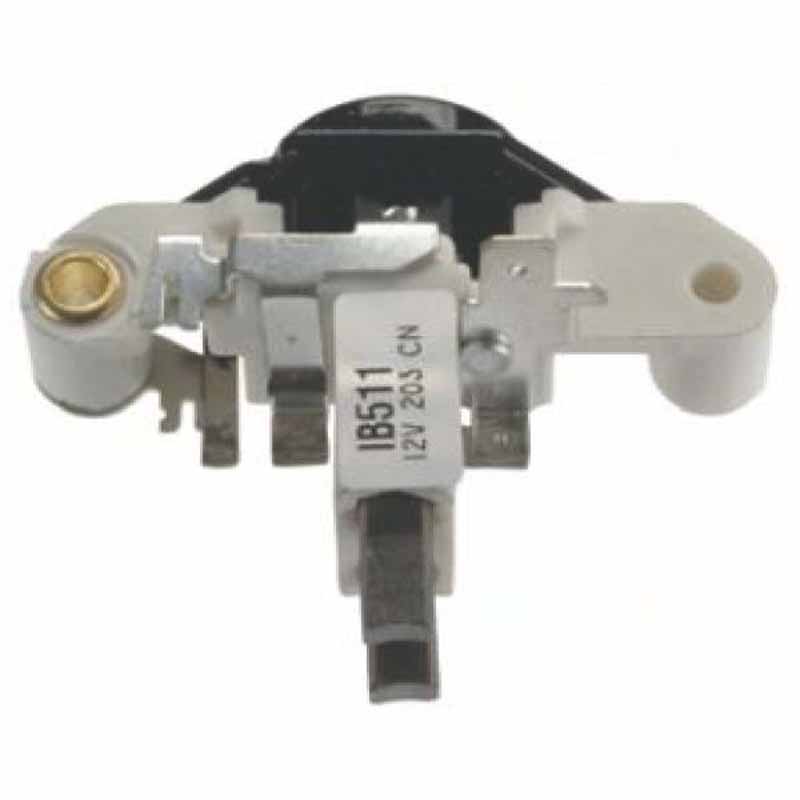

Voltage Set Point 28.5V A Circuit Slipring OD : 28 mm Hermetically sealed circuit

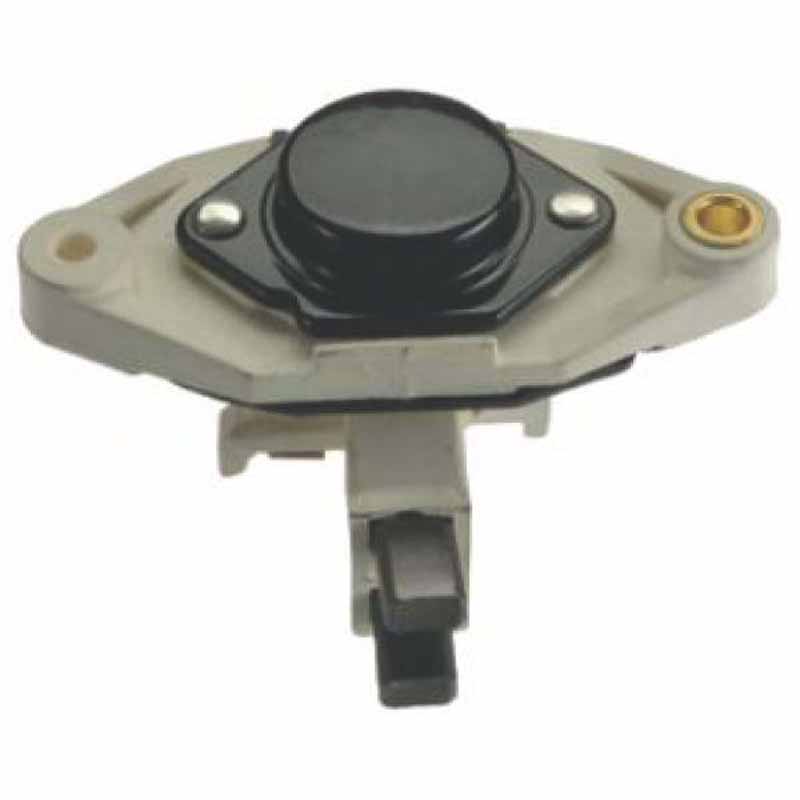

Voltage Set Point 14.5V A Circuit With Soft Start

Voltage Set Point 14.1V A Circuit Slipring OD : 28 mm

Voltage Set Point 14.1V A Circuit Slipring OD : 28 mm hermetically sealed circuit

Voltage Set Point 14.4 A Circuit Slipring OD : 14 mm Hermetically sealed circuit

Voltage Set Point 14.3V A Circuit

Voltage Set Point 14.5V A Circuit Hermetically sealed circuit

Voltage Set Point 14.1V A Circuit Slipring OD : 32 mm hermetically sealed circuit

Voltage Set Point 14.2V A Circuit With Soft Start

Voltage Set Point 14.5V B Circuit With Soft Start

Voltage Set Point 14.2V A Circuit Note: Active lamp function – with output. With TempCo –6.5mV/C Features: Shorted field, lamp & choke protection

Voltage Set Point 28.3 B Circuit Bosch Original Equipment

Voltage Set Point 28.3 B Circuit Bosch Original Equipment

Voltage Set Point 28.4 B Circuit Bosch Original Equipment

Voltage Set Point 28.3 B Circuit Bosch Original Equipment

Voltage Set Point 14.5 A Circuit S-DFM-L Terminals, Note: With external sense.

Voltage Set Point Lin interface B Circuit Regulation voltage controlled by vehicle PCM.

Voltage Set Point B Circuit Volt Set Controlled by ECU

Voltage Set Point COM Volt Set Controlled by ECU
