Hitachi

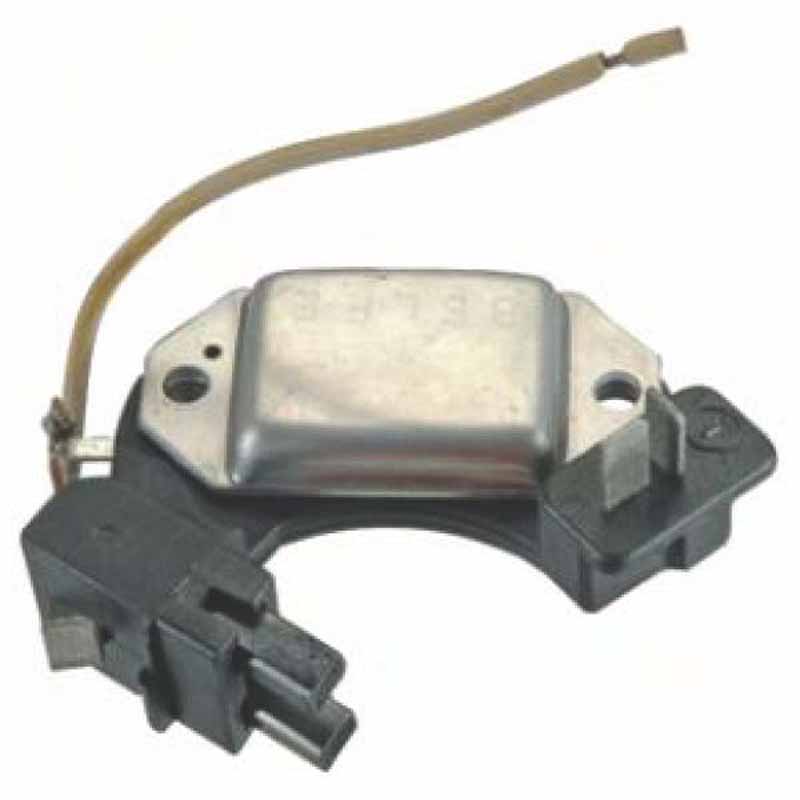

Voltage Set Point 28.5V A Circuit Terminal Identification: R-R-L-F-E

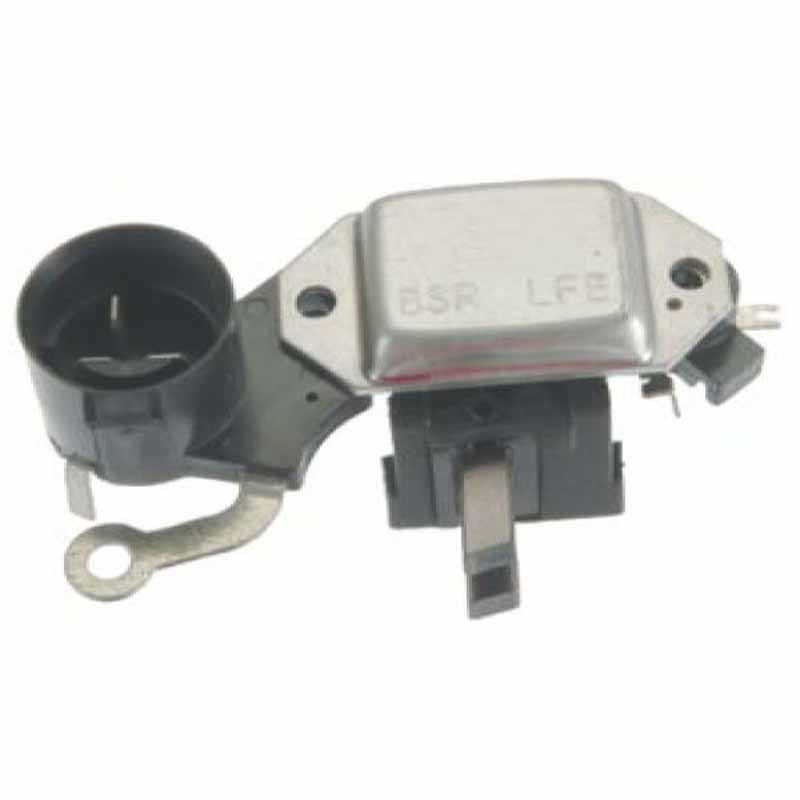

Voltage Set Point 14.3V A Circuit Terminal Identification: B-S-R-L-F-E

Voltage Set Point 14.3 A Circuit For: Hitachi IR/IF Alternators

Voltage Set Point 14.4v A Circuit

Voltage Set Point 14.3 A Circuit

Voltage Set Point 14.4 A Circuit D-P Terminals,

Voltage Set Point 14.2 A Circuit Short–circuit protected

Voltage Set Point 14.5 A Circuit Features: Stator excited

Voltage Set Point 14.2 A Circuit

Voltage Set Point 14.5 A Circuit

Voltage Set Point 14.6 A Circuit

Voltage Set Point 14.3 A Circuit

Voltage Set Point 14.3 A Circuit Note: Without capacitor.

Voltage Set Point 14.4 A Circuit

Voltage Set Point 14.3 A Circuit Note: With trio terminal.

Voltage Set Point 14.4 A Circuit

Voltage Set Point 14.2 A Circuit R-R-L-F-E Terminals,
