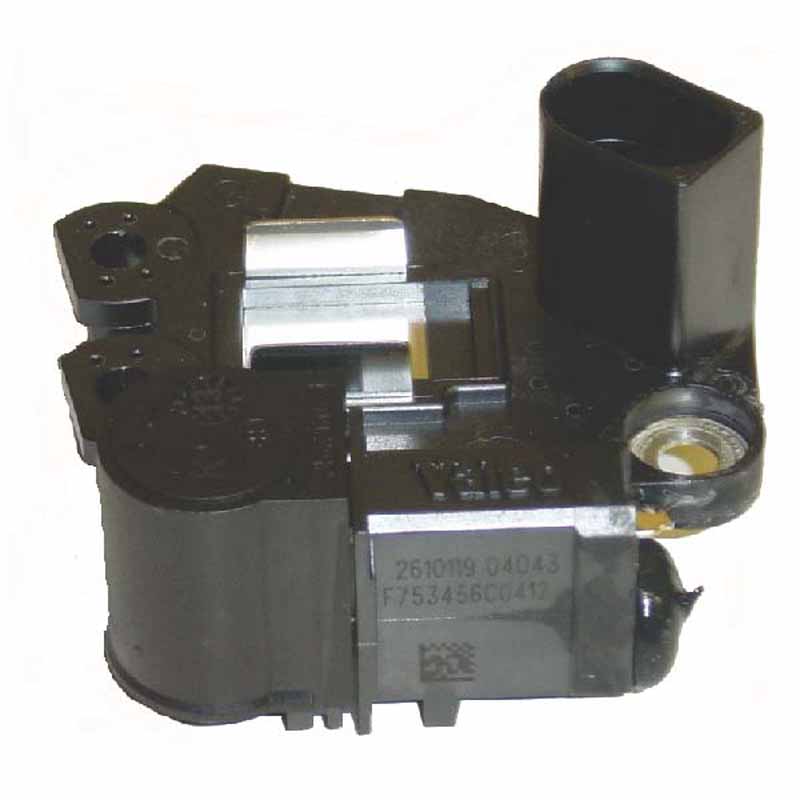

Valeo

Voltage Set Point 14.1V A Circuit

Voltage Set Point 14.6V B Circuit

Voltage Set Point 14.4V B Circuit

Voltage Set Point 14.5V A Circuit

Voltage Set Point 14.2V A Circuit Volvo Penta Marine

Voltage Set Point 14.6V A Circuit YL124 YL132 YL133

Voltage Set Point 14.4V A Circuit YL123 YL134 YL143

Voltage Set Point 14.4V A Circuit

Voltage Set Point 14.5V B Circuit

Voltage Set Point Com B Circuit

Voltage Set Point 14.5V B Circuit With Soft Start

Voltage Set Point COM

Voltage Set Point 14.4V B Circuit With Soft Start

Voltage Set Point COM

Voltage Set Point COM

Voltage Set Point COM

Voltage Set Point COM

Voltage Set Point 14.6 B Circuit With Soft Start

Voltage Set Point 14.6 B Circuit With Soft Start

Voltage Set Point 14.4 B Circuit With Soft Start Under voltage & over voltage lamp Shorted field, lamp & choke protection

Voltage Set Point 14.6 A Circuit

Voltage Set Point 14.6 B Circuit With Soft Start Features : Transpo Lamp / Stator Activated Soft Start Function Under Voltage lamp Indication L Terminal

Voltage Set Point 14.5 B Circuit With Soft Start Features : Transpo Stator or Lamp Activated Soft Start and LRC Functions Over Voltage, Under Voltage Lamp Indication L-FR Terminals

Voltage Set Point 14.6 A Circuit Features: Ignition activated, load dump protection Lamp & Field short– circuit protection
