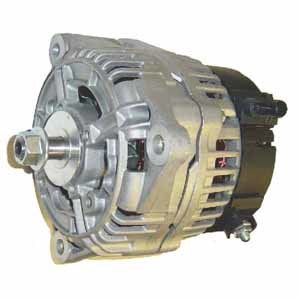

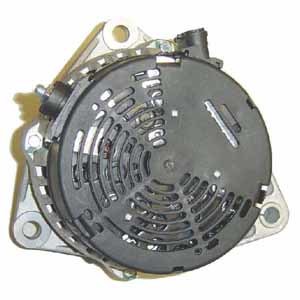

Product and Parts Breakdown for 100-470
500-214 - D/E Bearing
ID OD W 17mm 52mm 17mm Seal Both Sides
500-203 - SRE Bearing
ID OD W 17mm 40mm 12mm Seal Both Sides High Temperature
500-7060 - Regulator
Voltage Set Point 25.5 V B Circuit Notes - N/C-S-15-L-W terminals (N/C = no connection, 15 = ign.)
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL10-WL - Alt. Plug
Bosch NCB2 Alternator Plug 5 Pin With 300mm Lead
