Product and Parts Breakdown for 100-300-OR
500-214 - D/E Bearing
ID OD W 17mm 52mm 17mm Seal Both Sides
500-203 - SRE Bearing
ID OD W 17mm 40mm 12mm Seal Both Sides High Temperature
500-151 - Regulator
Voltage Set Point 14.5V A Circuit Hermetically sealed circuit

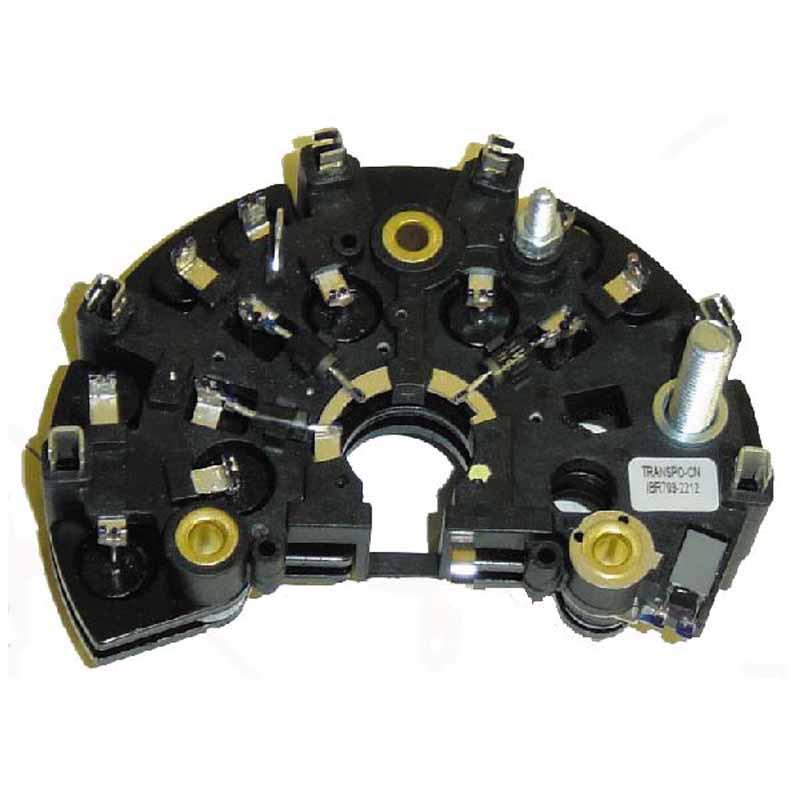

500-841 - Rectifier
B+ Post = 8 mm Features : Transpo 12-50A Avalanche Press Fit Diodes
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL10-WL - Alt. Plug
Bosch NCB2 Alternator Plug 5 Pin With 300mm Lead
