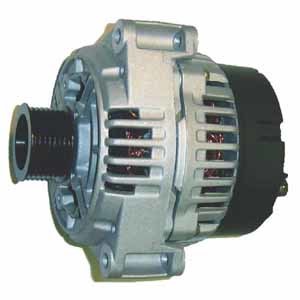

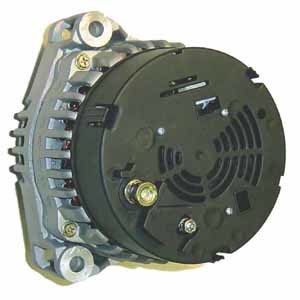

Product and Parts Breakdown for 100-255
500-214 - D/E Bearing
ID OD W 17mm 52mm 17mm Seal Both Sides
500-203 - SRE Bearing
ID OD W 17mm 40mm 12mm Seal Both Sides High Temperature
500-115 - Regulator
Voltage Set Point 14.5V A Circuit Slipring OD : 14 mm With 68 Ohm Resistor Hermetically sealed circuit
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
