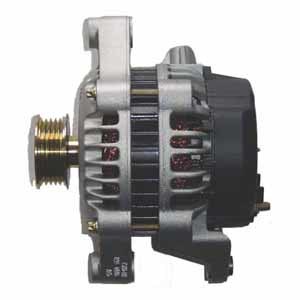

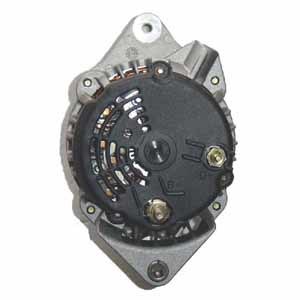

Product and Parts Breakdown for 100-078
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides

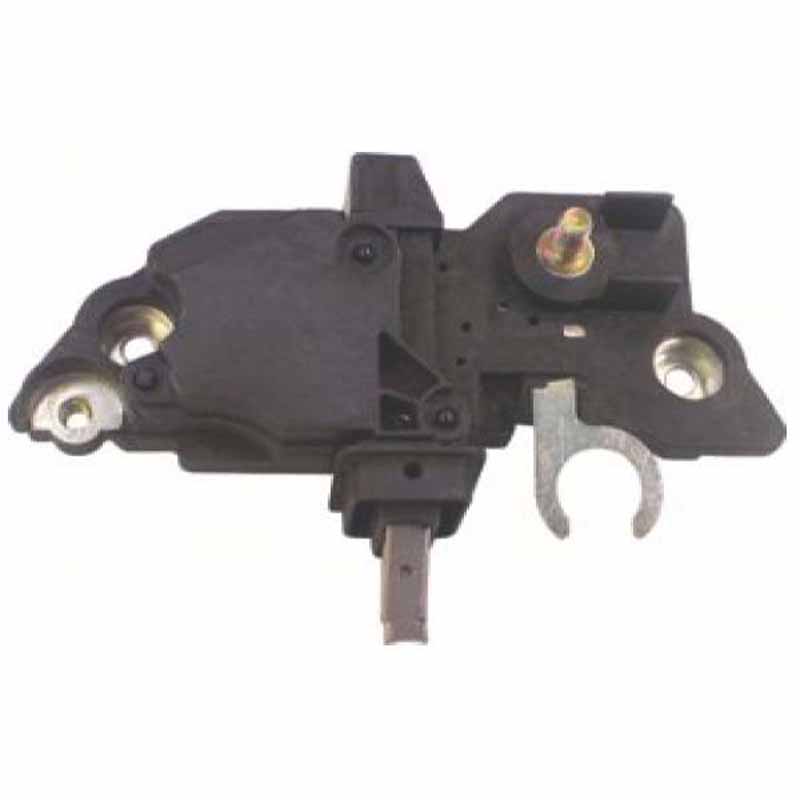

500-105 - Regulator
Voltage Set Point 14.4V A Circuit Slipring OD : 14 mm

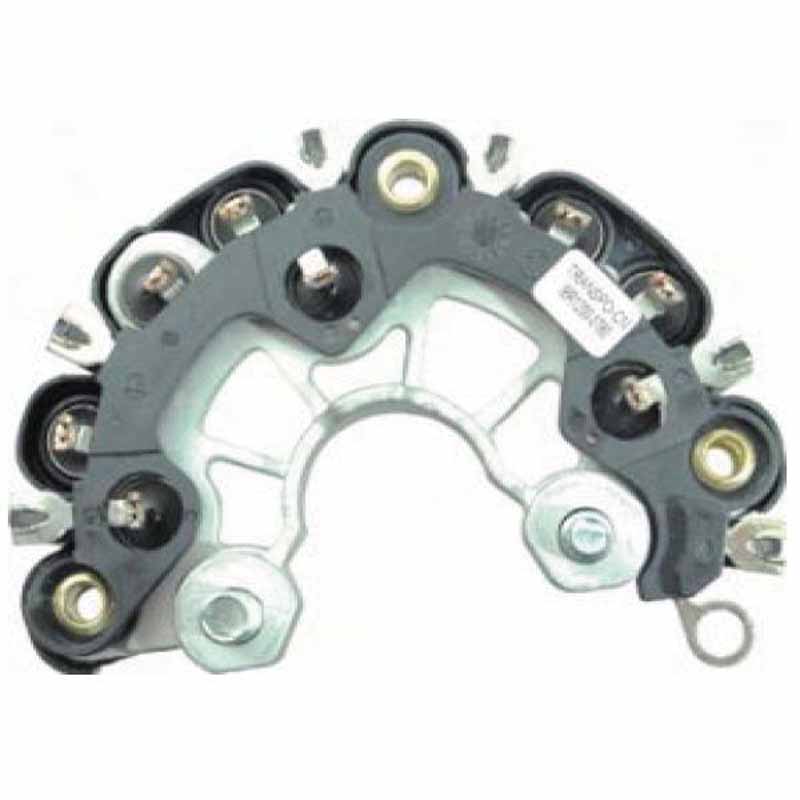

500-839 - Rectifier
B+ Post = 8 mm Note: Y–wound stator applications Features: 8–40A press–fit avalanche diodes (20–24V)
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
