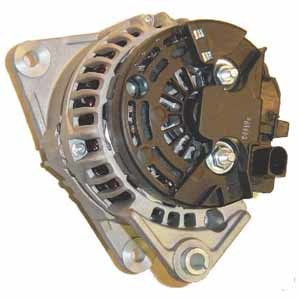

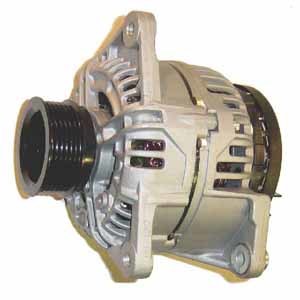

Product and Parts Breakdown for 100-358
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides
500-100 - Regulator
Voltage Set Point 14.5V A Circuit With Soft Start Slipring OD : 14 mm
500-821 - Rectifier
B+ Post = 8 mm Note: For Y–wound stator applications. Features: 6–50A press–fit avalanche diodes (20–24V)
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators

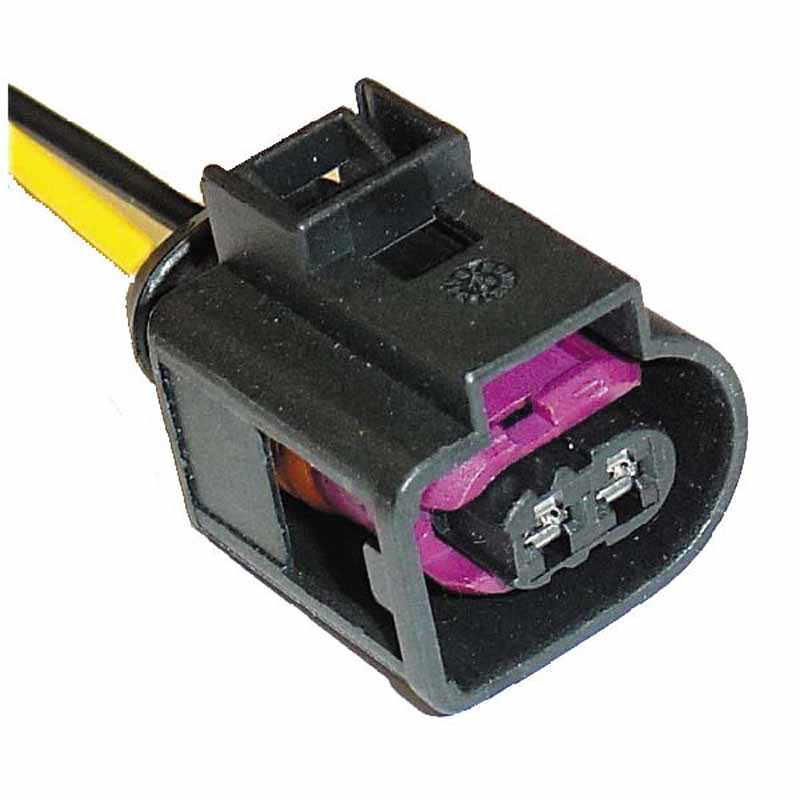

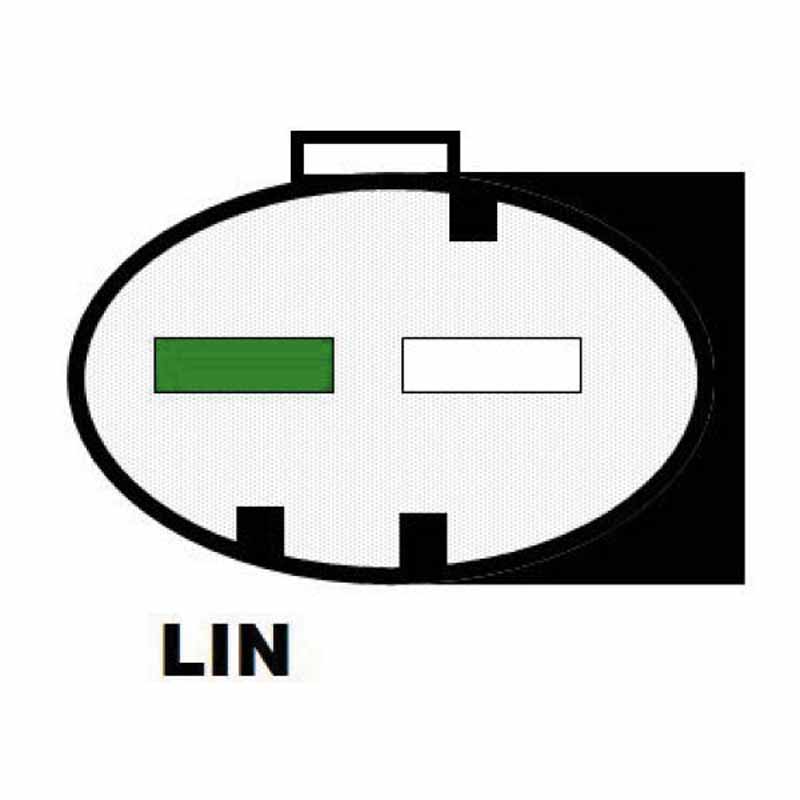

PL13-WL1 - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 1x 250mm Lead Ford Transit 2011 > Lin 2
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
