Product and Parts Breakdown for 100-131
500-461 - Pulley
Replacing F-232001 F-232001.2 Application Bosch Mercedes Clutch Pulley
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides

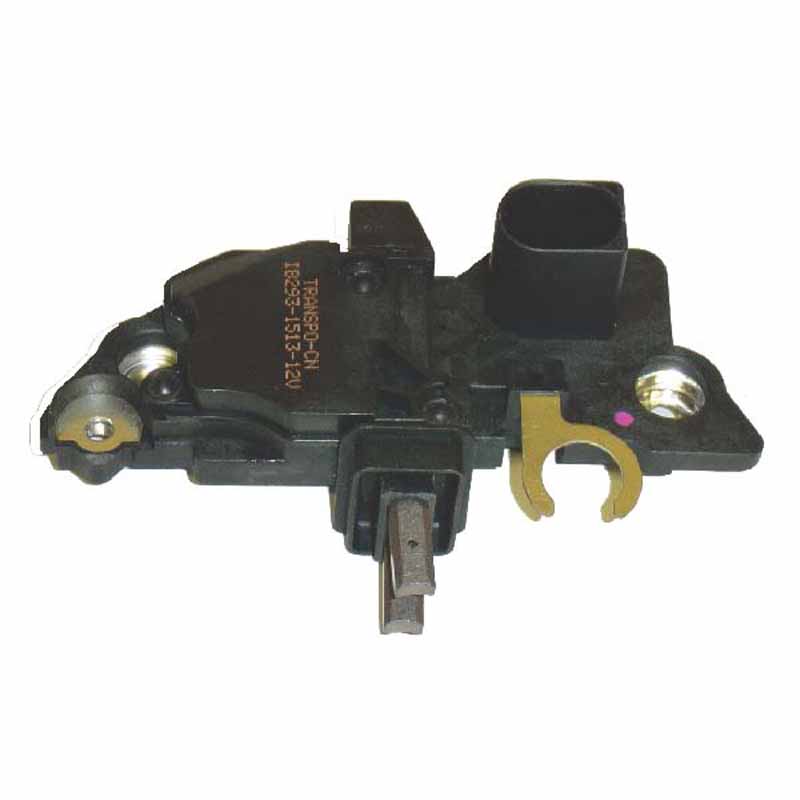

500-7016 - Regulator
Voltage Set Point COM Volt Set Controlled by ECU
500-823 - Rectifier
B+ Post = 8 mm Note: Delta stator application. Features: 6–50A press–fit avalanche diodes
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL15-WL - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 300mm Lead
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
