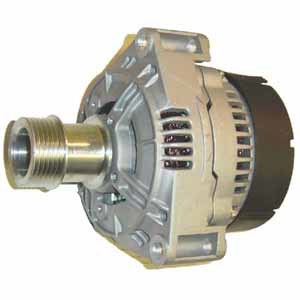

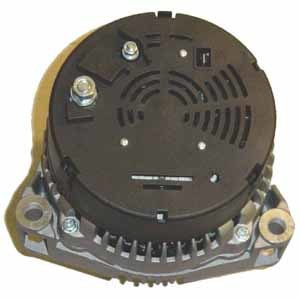

Product and Parts Breakdown for 100-391
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides
500-105 - Regulator
Voltage Set Point 14.4V A Circuit Slipring OD : 14 mm
500-819 - Rectifier
B+ Post = 8 mm Note: Delta stator application. Features: 6–50A press–fit avalanche diodes
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
