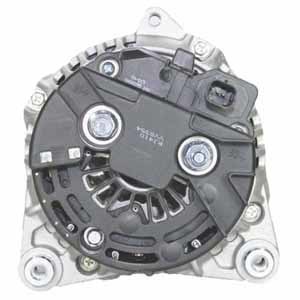

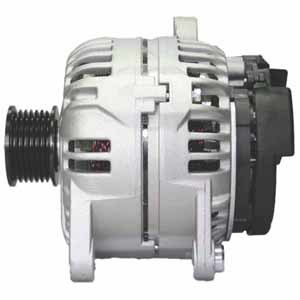

Product and Parts Breakdown for 100-324
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides
500-157 - Regulator
Voltage Set Point 14.5V A Circuit With Soft Start
500-829 - Rectifier
B+ Post = 8 mm Note: Delta stator application. Features: 6–60A press–fit avalanche diodes (20–24V)
AC050 - End Cover
Bosch SRE Cover Fited To Bosch 0124 Alternators Replacing F00M146011 Cargo 139928
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL12-WL - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 300mm Lead Fits renault / peugeot L-DFM type Alternators
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
