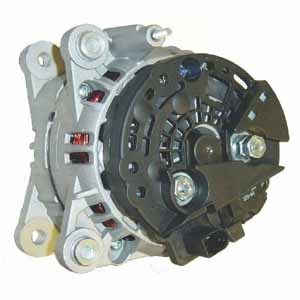

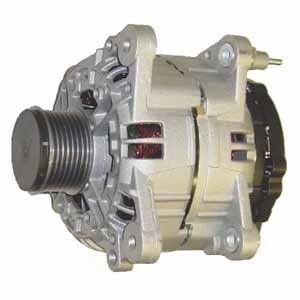

Product and Parts Breakdown for 100-4025
631-BO - Pulley
Replacing F235449.2,3,4,5 Application Bosch Audi / VW / Seat / Skoda
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides
500-100 - Regulator
Voltage Set Point 14.5V A Circuit With Soft Start Slipring OD : 14 mm
500-819 - Rectifier
B+ Post = 8 mm Note: Delta stator application. Features: 6–50A press–fit avalanche diodes
PL13-WL2 - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 250mm Leads
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
