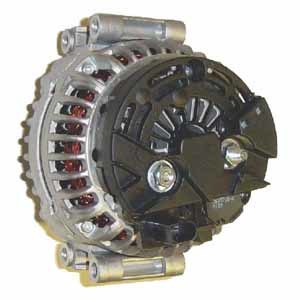

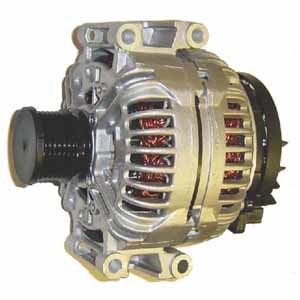

Product and Parts Breakdown for 100-450
500-395 - Pulley
Replacing F-223197.2,3,5 Application Bosch Mercedes Clutch Pulley
500-214 - D/E Bearing
ID OD W 17mm 52mm 17mm Seal Both Sides
500-208 - SRE Bearing
ID OD W 17mm 35mm 10mm Seal Both Sides

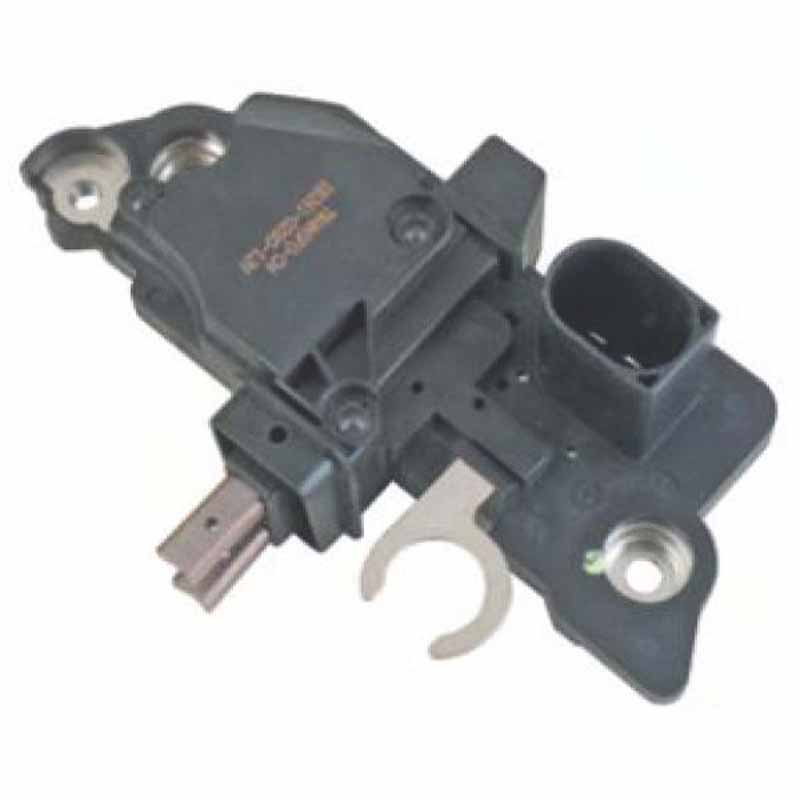

500-172 - Regulator
Voltage Set Point 14.5V B Circuit With Soft Start

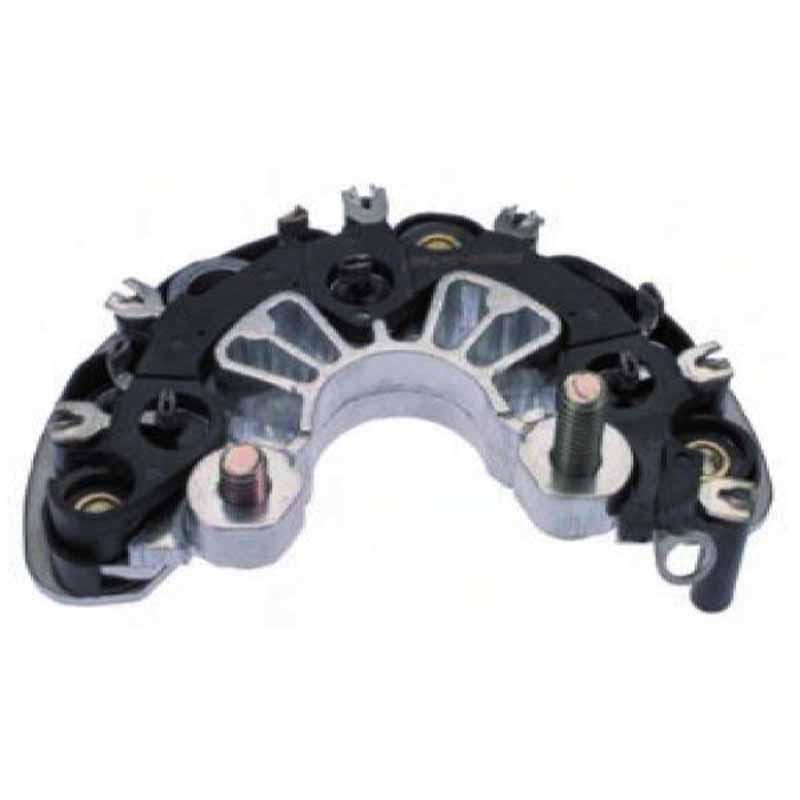

500-819 - Rectifier
B+ Post = 8 mm Note: Delta stator application. Features: 6–50A press–fit avalanche diodes
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL14-WL - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 300mm Lead
TR001 - Sundry 1
Bosch 0124 Series Tolerance Ring Fits 6003 Bearings Original Equipment
