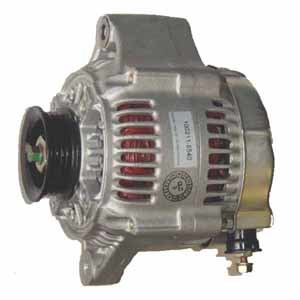

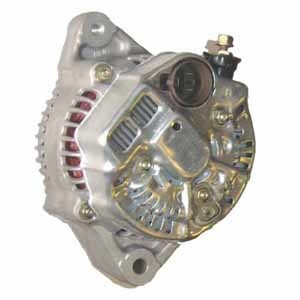

Product and Parts Breakdown for 100-228
500-226 - D/E Bearing
ID OD W 17mm 52mm 16mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides
500-7068 - Regulator
Voltage Set Point 14.5V A Circuit S-IG-L Terminals, 14.5 Vset, 5 sec. LRC
500-940 - Rectifier
B+ Post = 6 mm Denso 70-110A IR/IF Alternators w/ 118mm OD Stator 8-40A Press-Fit Diodes Aluminum Heatsink Welded Diode Terminations
SR004 - Slip Ring
Replacing 135173 Application Denso Alternators
PL5-WL - Alt. Plug
Denso Alternator Plug 3 Pin Round With 150mm Lead Fits Jaguar,Toyota,Suzuki Ect
