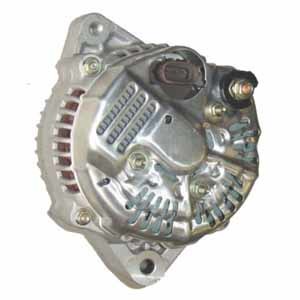

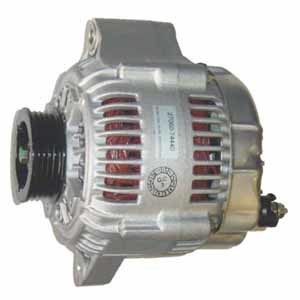

Product and Parts Breakdown for 100-194
500-226 - D/E Bearing
ID OD W 17mm 52mm 16mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides
500-136 - Regulator
Voltage Set Point 14.6V A Circuit S-IG-L Terminals
500-852 - Rectifier
B+ Post = 6 mm Note: With mtg. hole for 46–82300 ground strap. Features: 8–40A press–fit diodes, welded diode terminations
BA005 - Brush
Replacing 133673 Denso 100211 Type Alternators
SR007 - Slip Ring
Replacing 135179 Application Valeo Alternators
PL3-WL - Alt. Plug
Denso / Mitsubishi Alternator Plug 3 Pin Oval With 150mm Lead Fits Mitsubishi / Land Rover Totota / Kubota Ect
