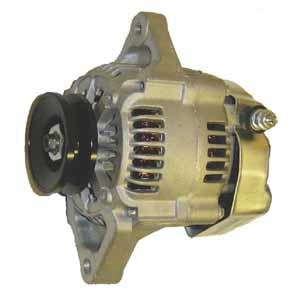

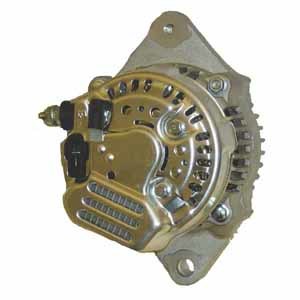

Product and Parts Breakdown for 100-4070

ID OD W 15mm 38mm 19mm Seal Both Sides

ID OD W 15mm 32mm 11mm Seal Both Sides

Voltage Set Point 14.5V A Circuit IG-L Terminals Active lamp function - with output

B+ Post = 6 mm Features: 8–40A diodes

Replacing 132084 Denso 100211/213 Type Alternators

Replacing 135173 Application Denso Alternators

Alternator T Plug With lock tab and 150mm Lead If your connector does not utilize the lock mechanism simply cut it off. (Butt connectors included)
