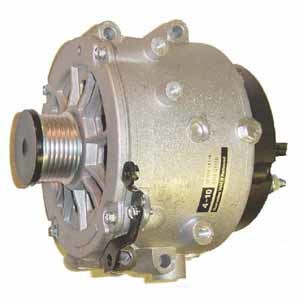

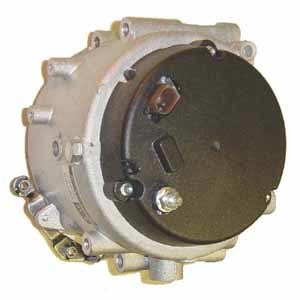

Product and Parts Breakdown for 100-400
500-394 - Pulley
Replacing F-229363.5,6,7,9 Application Bosch Mercedes Clutch Pulley
500-214 - D/E Bearing
ID OD W 17mm 52mm 17mm Seal Both Sides
500-202 - SRE Bearing
ID OD W 15mm 35mm 11mm Seal Both Sides

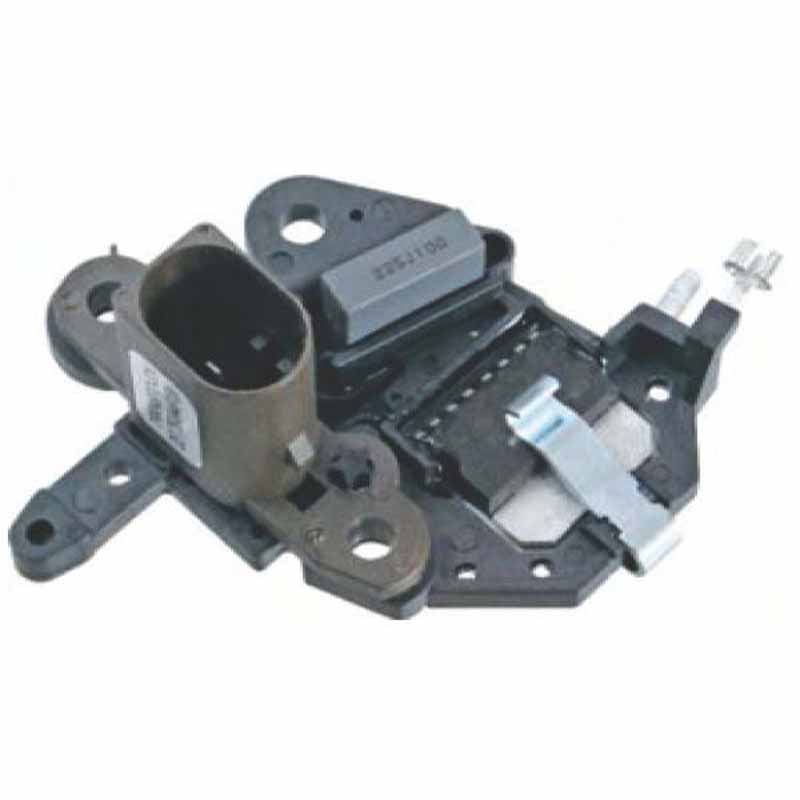

500-166 - Regulator
Voltage Set Point 14.9V B Circuit With Soft Start
500-909 - Rectifier
B+ Post = 8 mm 12-40A Avalanche Press Fit Diodes, 24-29V
PL13-WL2 - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 250mm Leads
500-909HD - Rectifier
B+ Post = 8 mm 12-810A Avalanche Press Fit Diodes, 24-29V
