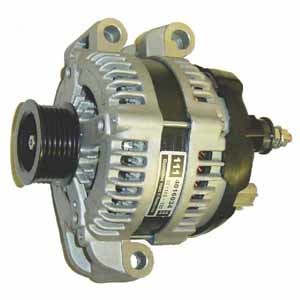

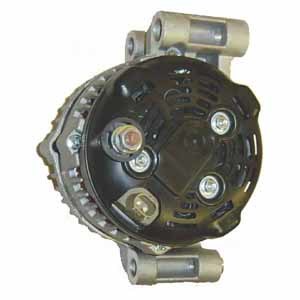

Product and Parts Breakdown for 100-4006
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-211 - SRE Bearing
ID OD W 15mm 35mm 13mm Seal Both Sides
500-918 - Rectifier
B+ Post = 8 mm 2-50A press-fit avalanche diodes (20-24V) Aluminum heat sinks
SR009 - Slip Ring
Replacing 239718 Application Denso 104210 Type
PL22-WL - Alt. Plug
Chrysler Alternator Plug 2 Pin With 300mm Lead (F1-F2) Connector
