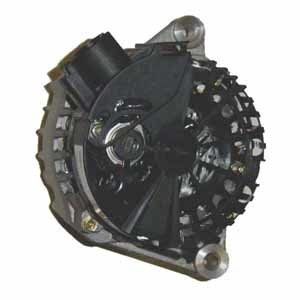

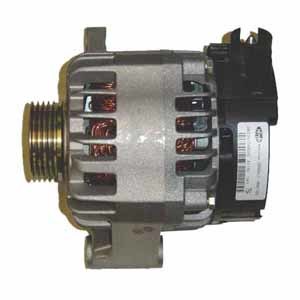

Product and Parts Breakdown for 100-110
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-202 - SRE Bearing
ID OD W 15mm 35mm 11mm Seal Both Sides
500-7005 - Regulator
Voltage Set Point 14.5 B Circuit With Soft Start Features : Transpo Stator or Lamp Activated Soft Start and LRC Functions Over Voltage, Under Voltage Lamp Indication L-FR Terminals
SA001 - Brush
Replacing PX602 SVX72 Application Valeo Alternators Brush Set Only
SR001 - Slip Ring
Replacing 230090 Application Valeo Alternators
PL12-WL - Alt. Plug
Bosch / Valeo Alternator Plug 2 Pin With 300mm Lead Fits renault / peugeot L-DFM type Alternators
