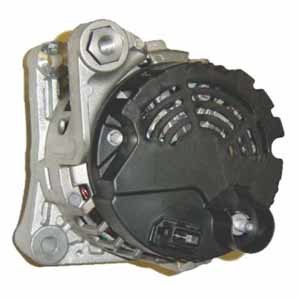

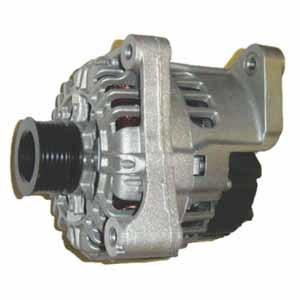

Product and Parts Breakdown for 100-322
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-202 - SRE Bearing
ID OD W 15mm 35mm 11mm Seal Both Sides
SR001 - Slip Ring
Replacing 230090 Application Valeo Alternators
500-601N - Diode Negative
Voltage 19/25 Negative Amps 65 Press Fit OD 11.20 OD Collar 12.75 Lead Length 21.13
500-601P - Diode Positive
Voltage 19/25 Positive Amps 65 Press Fit OD 11.20 OD Collar 12.75 Lead Length 21.13
PL18-WL - Alt. Plug
Bosch / Valeo Alternator Plug 3 Pin With 300mm Lead BMW /Range Rover
