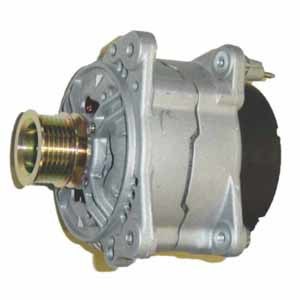

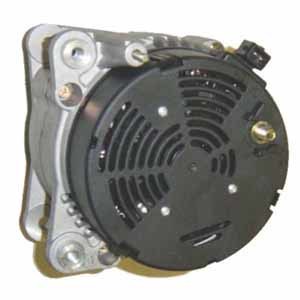

Product and Parts Breakdown for 100-199
500-217 - D/E Bearing
ID OD W 17mm 47mm 14mm Seal Both Sides
500-203 - SRE Bearing
ID OD W 17mm 40mm 12mm Seal Both Sides High Temperature
500-160 - Regulator
Voltage Set Point 14.4 A Circuit Slipring OD : 14 mm Hermetically sealed circuit
500-840 - Rectifier
B+ Post = 8 mm Note: With diode trio. Features: 8–50A press–fit avalanche diodes (20–24V)
SR005 - Slip Ring
Replacing 135172 Application Bosch IR/IF Alternators
PL24-WL - Alt. Plug
Bosch / Valeo Alternator 2 Pin With 150mm Lead Fits Audi,Ford LDV,VW Ect
